Filter Mats

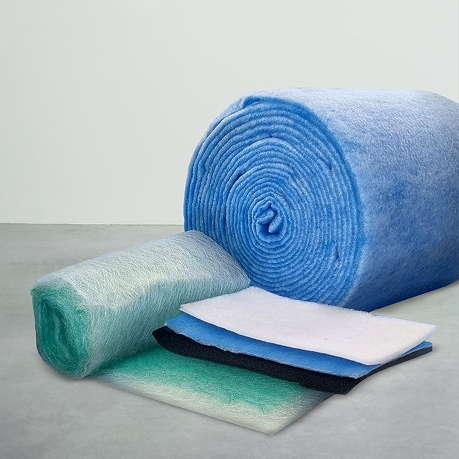

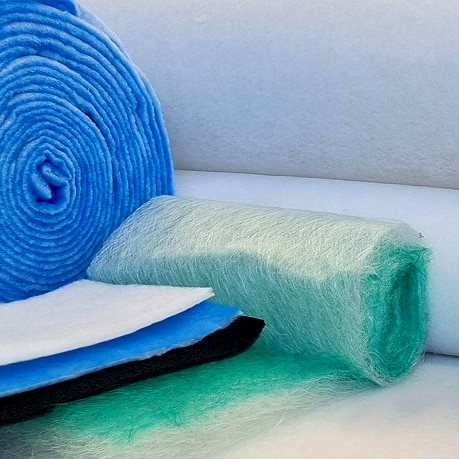

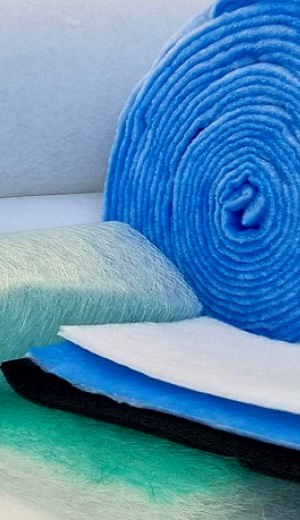

Filter mats, supplied in rolls or custom-cut panels, are an economical and reliable solution for air purification in general ventilation systems and painting booths. Available in synthetic fibre and fiberglass, they offer efficiency classes ranging from ISO Coarse 35 to ISO ePM10 60 according to EN ISO 16890, equivalent to G2–M5 classes under EN 779:2012.
Our Filter Mats
Synthetic Fibre Filter Mat
Made with blends of synthetic fibres of different diameters, properly bonded together, these mats offer excellent mechanical strength and high dust-holding capacity.

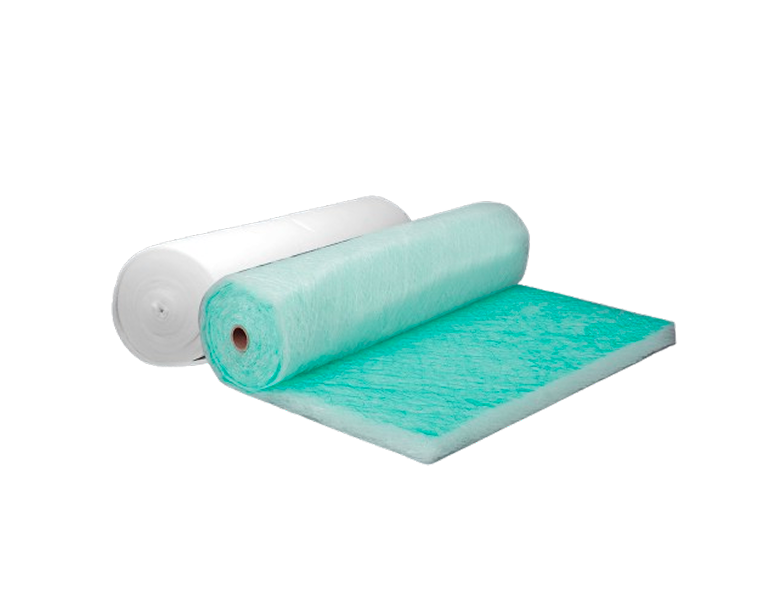

Fiberglass Filter Mat
Ideal for applications requiring efficient filtration and high thermal resistance. Thanks to their progressive structure, they provide good retention of dust and particulate. They are particularly suitable for capturing excess paint in the exhaust air of painting booths.
Applications of Filter Mats
Lombarda Filtri’s synthetic and fiberglass filter mats can be used as an alternative to complete filters (or as replacement media) for air purification in multiple contexts:
Hotels
improve comfort and indoor air quality for guests and staff.
Hospitals
help reduce contaminants and harmful particles.
Shopping centres
enhance air quality in high-traffic environments.
Museums
help preserve artworks and artefacts from atmospheric contamination and improve visitor and staff comfort.
Industries
support production processes by reducing airborne impurities.
Offices
promote healthier working environments for employees and visitors.
Painting
maintain process quality by ensuring proper filtration of incoming air and retain excess paint in exhaust air, ensuring compliance with safety and environmental standards.
Private homes
improve indoor air quality by reducing dust and allergens.
Technical Features
Lombarda Filtri products combine quality, innovation, and regulatory compliance. Explore the technical specifications of our filters to ensure clean air, safety, and optimal performance in industrial and civil applications.
We supply filter mats with efficiency classes from ISO Coarse 35 to ISO ePM10 60 according to EN ISO 16890 (G2 to M5 according to EN 779:2012). Flame resistance is rated F1 according to DIN 53438. For specific applications and markets, mats with M1 classification according to French standard NF P 92-507 are also available. Available in rolls or custom-cut panels.
Applications
Filter mats are used in general ventilation systems and painting booths (LF600M). In particular, the LF600M mat is used as a “ceiling filter” in industrial painting booths, ensuring a uniform airflow free of particles that could compromise product finishing. Fiberglass panels or rolls (FV50) are used to retain excess paint in exhaust air.
Installation and Maintenance
Easy to install on standard frames or custom structures. To ensure consistent performance, periodic maintenance is recommended, with replacement or cleaning based on clogging level.
Characteristics
View Table
| TYPE | LF90 | LF170 | LF220 | LF350C | LF600M | FV50 | FV100 |
|---|---|---|---|---|---|---|---|
| Composition | POLYESTER | FIBERGLASS | |||||
| Thickness [mm] | 8 | 18 | 18 | 18 | 22 | 60 | 100 |
| Air velocity [m/s] | 1,5 | 1,5 | 1,5 | 1,5 | 0,25 | 1,5 | 1,5 |
| Initial pressure drop [Pa] | 20 | 25 | 37 | 75 | 33 | 25 | 35 |
|
EN ISO 16890 efficiency class |
ISO Coarse 35% | ISO Coarse 55% | ISO Coarse 65% | ISO Coarse 75% | ISO ePM10 55% | ISO Coarse 50% | ISO Coarse 55% |
|
EN 779:2012 class |
G2 | G3 | G4 | G4 | M5 | G3 | G3 |
| DIN 53438 class | F1 | F1 | F1 | F1 | F1 | F1 | F1 |
Advantages of Filter Mats
Filter mats offer numerous benefits, making them an ideal solution for air-conditioning and ventilation systems:
- Wide range of filtration efficiencies and dust-holding capacities
- Available in various formats: rolls and custom-cut panels
- Compliance with safety standards
All Our Filters
High-Efficiency Filter Mats
Lombarda Filtri’s filter mats are made with high-quality materials, ensuring excellent filtration efficiency and long-lasting performance. Thanks to an advanced production process, each product guarantees optimal airflow distribution and high dust-holding capacity. Continuous research and development allow us to offer cutting-edge solutions for industrial, commercial, and residential sectors.
Filter Mats Compliant with Standards
All our filter mats are classified according to EN ISO 16890 and EN 779. Synthetic and fiberglass mats comply with DIN 53438, ensuring F1 flame resistance. For applications requiring higher fire-protection standards, M1-rated versions compliant with NF P 92-507 are available.
Standards
EN ISO 16890
EN 779
EN 1822
EN ISO 29463
EN ISO 10121
Personalized Technical Consulting
Lombarda Filtri provides tailored consulting and technical support to identify the most suitable filtration solution for HVAC systems, ensuring efficient and safe air management.
